Designed to meet construction, quarrying and mining needs

Hauling Giants

Engineered for higher performance output, minimal maintenance and operation costs and lower cost per tonne all equals a higher return on your investment.

Rigid Dump Trucks

Impressive performance

Our dump trucks incorporate proven Hitachi technology, including an advanced AC drive system developed for Japan’s high-speed bullet trains, and technology from our mining excavators. The result is the Hitachi drive control system, which ensures more stable haul-cycle times, giving you higher levels of productivity, safety and efficiency. As well as technologically advanced, our dump trucks are also easy to manoeuvre, with user-friendly controls and smooth handling.

Find Your Rigid Dump Trucks

Hitachi EH3500ACIII

The Hitachi EH3500ACIII rigid dump truck has been designed to meet large scale mining and construction needs.
Capable of carrying the big loads for the big jobs, Hitachi’s manufacturing and hydraulic expertise has been used to develop a strong, reliable and productive range of heavy duty rigid dump trucks.
  • 1491kw Engine rated power
  • 181,000kg Nominal Payload
  • 322000kg Operating Weight
Hitachi EH3500ACIII
  • Engine
  • AC Control Cabinet
  • Alternator
  • AC Wheel Motor
  • Grid Box (Electric Brake)
  • Axle
  • Body Capacities
  • Steering System
  • Hydraulic System
Model: Cummins QSKTA50-CE
Type: 4 Cycle Diesel w/ MCR fuel system
Aspiration: 2 stage Turbocharged & Low Temperature Aftercooled
Emission Certification: U.S. EPA Tier 2
Gross Power @1900 min-1 (rpm) SAE J1995: 1,491 kW (2,000 HP)
Net power @1900 min-1 (rpm): 1,398 kW (1,874 HP)
Maximum Torque @1 500 min-1 (rpm) SAE J1995: 7,871 N.m (803 kgf.m)
No. of Cylinders: 16
Bore & Stroke: 159 x 159 mm
Displacement: 50.3 L
Starting: 24 Volt Electric
Rectifier Number of units: 1
Rated capacity: 1,340 kW
IGBT Inverter Number of units: 2
IGBT Inverter Rated capacity per unit: 800 kVA
Chopper Number of units: 2
Chopper Rated capacity per unit: 1,300 kW
Number of units: 1
Capacity: 1,500 kVA at 1,900min-1 (rpm)
Number of units: 2
Capacity per unit: 620 kW
Number of modules: 4
Capacity per unit: 625 kW (3 min.)
Planetary Ratio: 35.2 : 1
Maximum Speed (Continuous): 56 km/h
Struck (SAE): 80.4 m3
Heaped 3:1: 105 m3
Heaped 2:1 (SAE): 117 m3
Turning Diameter (ISO 7457): 29.3 m
Body Raise Travel: 59.0 degrees
Body Raise Time: 17.5 sec
Body Down Time (Float): 15.0 sec

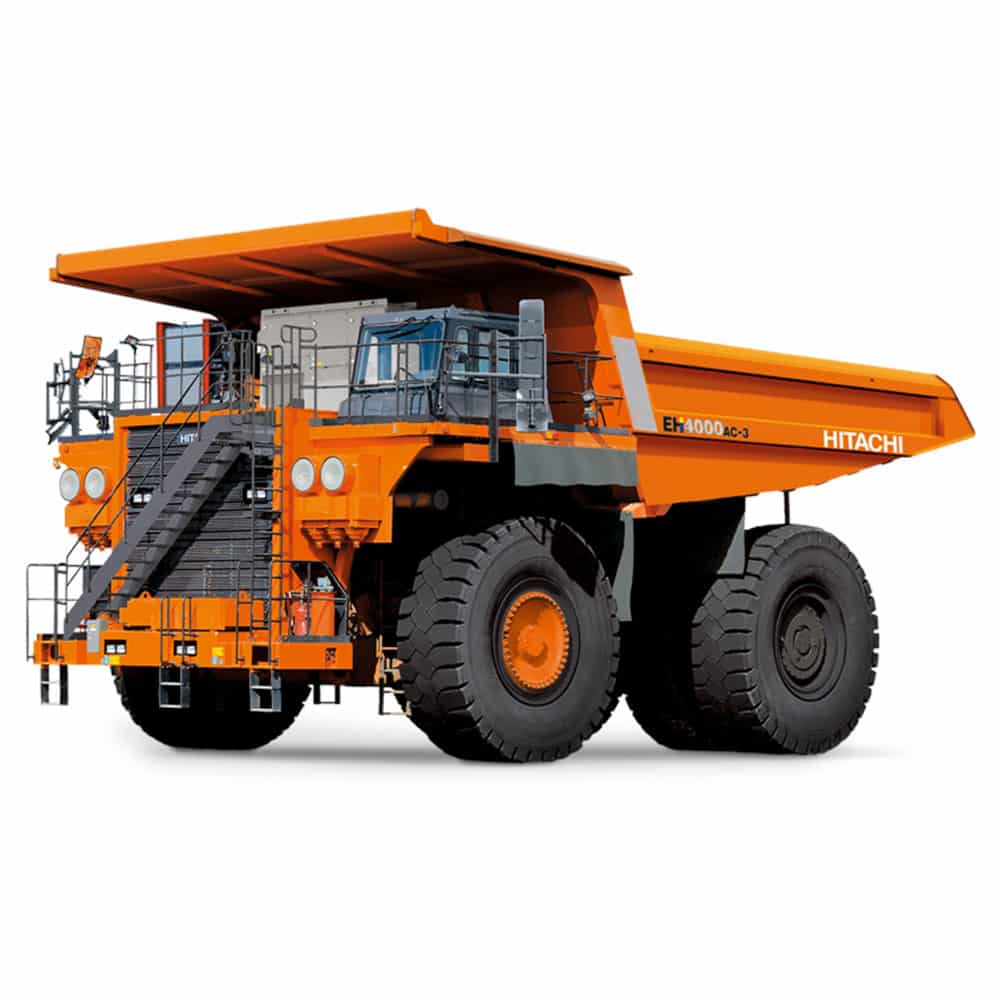

Hitachi EH4000ACIII

Refined engineering and advanced Hitachi AC Drive system technology has created hauling capability well recognized in the surface mining industry. The EH4000AC continues to prove itself as an exceedingly capable and reliable solution to mine applications worldwide.

  • 1864kw Engine rated power
  • 384000kg Operating Weight
  • 221,000kg Nominal Payload
Hitachi EH4000ACIII
  • Engine
  • AC Control Cabinet
  • Alternator
  • AC Wheel Motor
  • Grid Box (Electric Brake)
  • Axle
  • Body Capacities
  • Steering System
  • Hydraulic System
Model: Cummins QSKTA60-CE
Type: 4 Cycle Diesel w/ MCR fuel system
Aspiration: 1 stage Turbocharged & Low Temperature Aftercooled
Emission Certification: U.S. EPA Tier 2
Gross Power @1900 min-1 (rpm) SAE J1995: 1,864 kW (2500 HP)
Net power @1900 min-1 (rpm): 1,771 kW (2,370 HP)
Maximum Torque @1 500 min-1 (rpm) SAE J1995: 9,839 N.m (1,004 kgf.m)
No. of Cylinders: 16
Bore & Stroke: 159 x 190 mm
Displacement: 60 L
Starting: 24 Volt Electric
Rectifier Number of units: 1
Rectifier Rated capacity: 1,680 kW
IGBT Inverter Number of units: 2
IGBT Inverter Rated capacity per unit: 1,000 kVA
Chopper Number of units: 2
Chopper Rated capacity per unit: 1950 kW
Number of units: 1
Capacity: 1,900 kVA at 1 900min-1 (rpm)
Number of units: 2
Capacity per unit: 765 kW
Number of modules: 5
Capacity per unit: 625 kW (3 min.)
Planetary Ratio: 35.3 : 1
Maximum Speed (Continuous): 56 km/h
Struck (SAE): 106 m3
Heaped 3:1: 138 m3
Heaped 2:1 (SAE): 154 m3
Turning Diameter (ISO 7457): 30.2 m
Body Raise Travel: 57.5 degrees
Body Raise Time: 18.0 sec
Body Down Time (Float): 13.0 sec
  • Overview
  • Technical Info

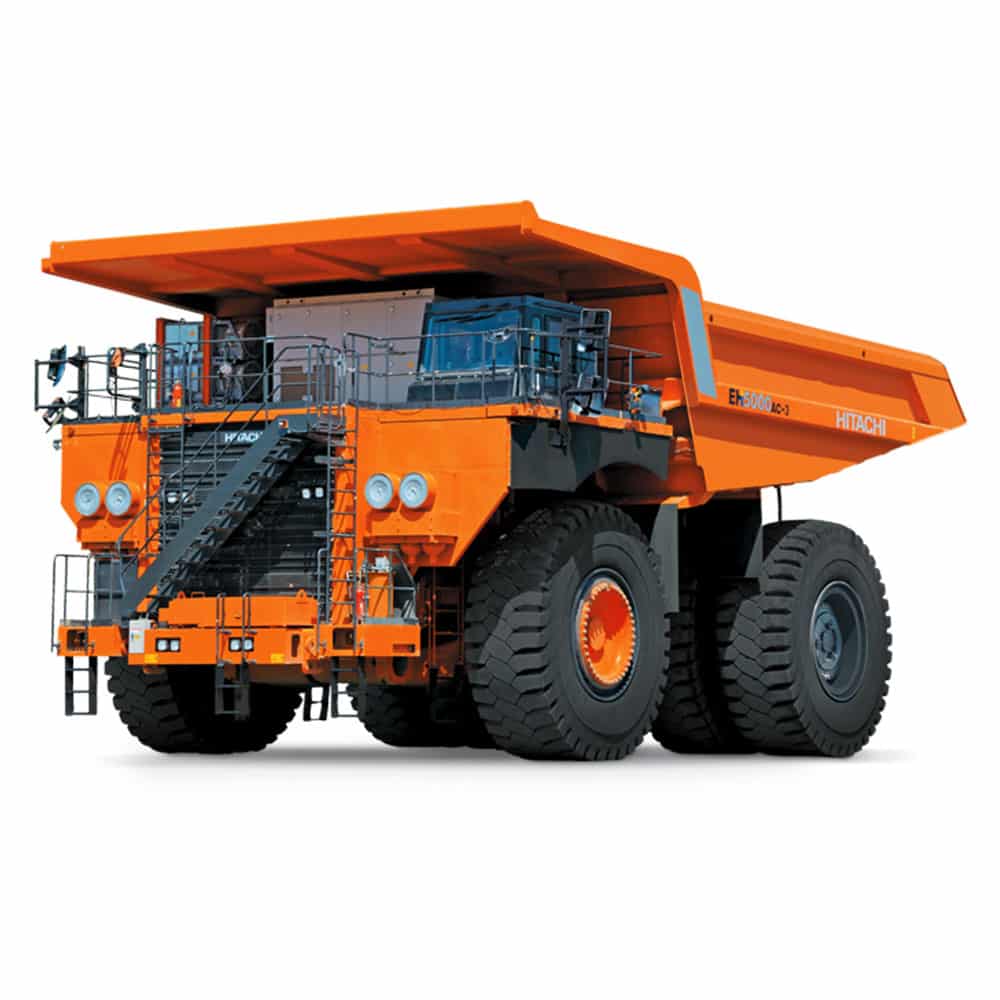

Hitachi EH5000ACIII

Refined engineering and New Generation AC Drive system technology has created hauling capability well recognized in the surface mining industry. The EH5000AC continues to prove itself as an exceedingly capable and reliable solution to mine applications worldwide.
  • 2125kw Engine rated power
  • 296,000kg Nominal Payload
  • 500.000kg Operating Weight
Hitachi EH5000ACIII
  • Engine
  • AC Control Cabinet
  • Alternator
  • AC Wheel Motor
  • Grid Box (Electric Brake)
  • Axle
  • Body Capacities
  • Steering System
  • Hydraulic System
Model: Cummins QSKTTA60-CE
Type: 4 Cycle Diesel w/ MCR fuel system
Aspiration: 2 stage Turbocharged & Low Temperature Aftercooled
Emission Certification: U.S. EPA Tier 2
Gross Power @1900 min-1 (rpm) SAE J1995: 2,125 kW (2,850 HP)
Net power @1900 min-1 (rpm): 1,970 kW (2,640 HP)
Maximum Torque @1 500 min-1 (rpm) SAE J1995: 10 628Nm (1,084 kgfm)
No. of Cylinders: 16
Bore and Stroke: 159 x 190 mm
Displacement: 60 L
Starting: 24 Volt Electric
Rectifier Number of units: 1
Rectifier Rated capacity: 1,860 kW
IGBT Inverter Number of units: 2
IGBT Inverter Rated capacity per unit: 1,200 kVA
Chopper Number of units: 2
Chopper Rated capacity per unit: 1,950 kW
Number of units: 1
Capacity: 2,050 kVA @ 1,900 min-1 (rpm)
Number of units: 2
Capacity per unit: 920 kW
Number of modules: 6
Capacity per unit: 625 kW (3 min.)
Planetary Ratio: 41.0 : 1
Maximum Speed (Continuous): 56 km/h
Struck (SAE): 148 m3
Heaped 3:1: 185 m3
Heaped 2:1 (SAE): 202 m3
Turning Diameter (ISO 7457): 29.9 m
Body Raise Travel: 58 degrees
Body Raise Time: 24 sec
Body Down Time (Float): 22 sec
